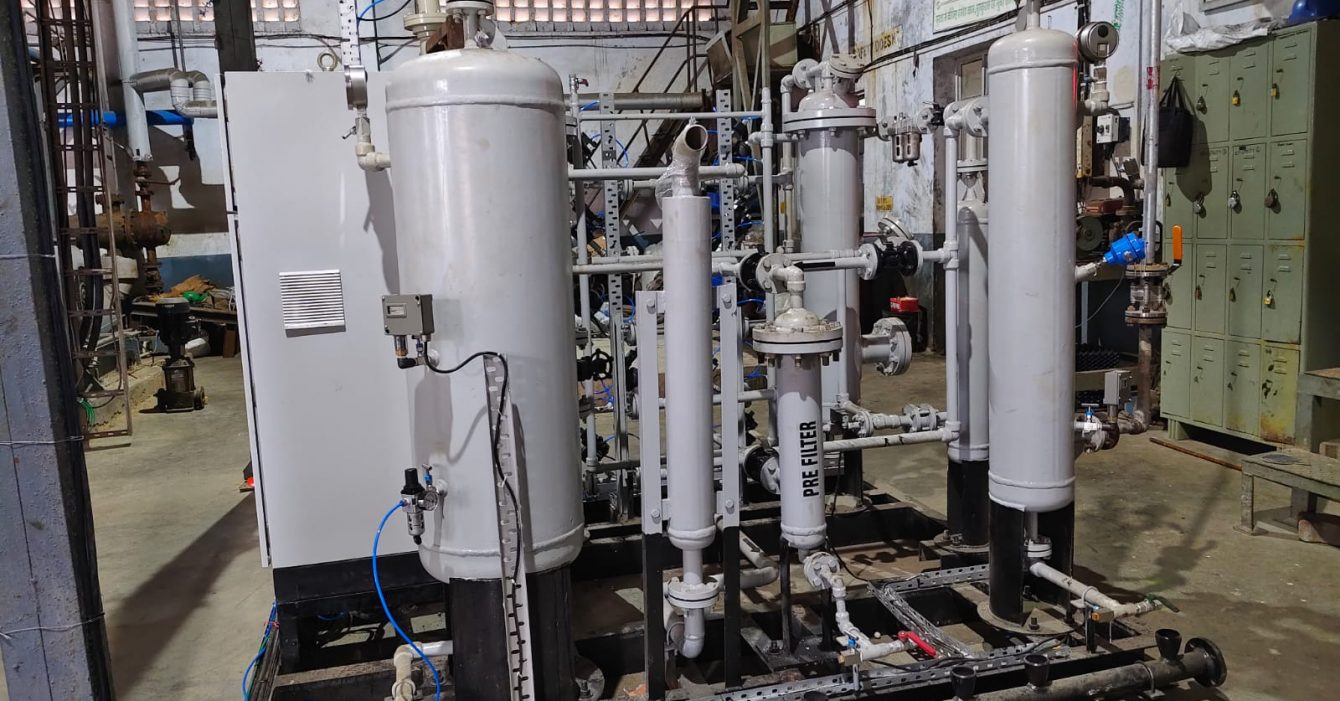

A PSA oxygen plant generates oxygen on-site from compressed air using Pressure Swing Adsorption. The system separates nitrogen from air and delivers concentrated oxygen for industrial and medical use. Three parameters define PSA oxygen plant performance: oxygen purity, oxygen recovery rate, and adsorbent selection. These parameters interact continuously. Designers must optimize them together.
Working Principle of PSA Oxygen Generation
Pressure Swing Adsorption separates gases based on adsorption behavior under pressure. Ambient air contains approximately 78 percent nitrogen, 21 percent oxygen, and trace gases. PSA oxygen plants operate opposite to nitrogen PSA systems. In oxygen PSA, nitrogen is adsorbed while oxygen passes as product gas.
Air Compression and Pre-Treatment
An air compressor compresses ambient air. The compressed air passes through an air dryer, oil removal filters, and particulate filters. These stages remove moisture, oil, and dust. Clean compressed air protects the adsorbent and ensures stable operation.
Nitrogen Adsorption Phase
The system directs compressed air into vessels filled with zeolite molecular sieve. Zeolite selectively adsorbs nitrogen molecules. Nitrogen enters the microporous structure due to adsorption kinetics. Oxygen remains in the gas phase. The system collects oxygen as the product gas.
Regeneration Phase
The system reduces pressure in the adsorption vessel. Pressure reduction releases adsorbed nitrogen. The vessel regenerates and becomes ready for the next cycle. Continuous cycling maintains uninterrupted oxygen generation.
Oxygen Purity as a Core Design Parameter
Oxygen purity defines the percentage concentration of oxygen in the product gas stream. Typical PSA oxygen purity ranges between 90 to 93 percent for industrial applications. Medical systems often operate within a similar range. Higher purity requires cryogenic air separation systems.
Oxygen purity depends on zeolite selectivity, cycle time, operating pressure, and flow rate. Higher purity usually reduces recovery rate. Designers must balance purity requirement with energy cost.
Oxygen Analyzer Monitoring
An oxygen purity analyzer measures real-time concentration. Continuous monitoring ensures purity stability. Purity drift indicates cycle imbalance or adsorbent degradation. Purity is therefore a controlled engineering variable, not a fixed outcome.
Oxygen Recovery Rate and Its Impact on Plant Efficiency
Recovery rate defines the percentage of oxygen in feed air that becomes usable product gas. Higher recovery reduces compressed air consumption. Lower compressed air consumption reduces energy cost.
Air compression consumes most of the electrical energy in a PSA oxygen plant. If recovery rate increases, the system produces more oxygen per unit of compressed air. Recovery rate depends on bed size, adsorption capacity, cycle time, and pressure differential. Optimized recovery improves plant efficiency and reduces operating expense.
Adsorbent Selection in PSA Oxygen Plants
Zeolite molecular sieve functions as the key adsorbent material. Zeolite selectively adsorbs nitrogen over oxygen due to molecular polarity differences.
Nitrogen Selectivity
Selectivity defines how strongly zeolite prefers nitrogen compared to oxygen. Higher selectivity improves oxygen purity.
Adsorption Capacity
Adsorption capacity defines how much nitrogen the zeolite can hold per cycle. Higher capacity supports better recovery rate.
Mechanical Strength
Zeolite pellets must withstand repeated pressure swings. Weak pellets break into dust and reduce flow distribution.
Resistance to Moisture
Zeolite is sensitive to moisture. Excess moisture reduces adsorption efficiency. Proper air drying protects adsorbent life.
Lithium-Based vs Sodium-Based Zeolite
Lithium-based zeolite provides higher nitrogen selectivity. It supports higher recovery at lower energy cost. Sodium-based zeolite offers lower capital cost but reduced performance margin. Adsorbent choice directly influences purity and efficiency.
Interrelationship Between Purity, Recovery, and Adsorbent Type
PSA oxygen plant design requires trade-off analysis. Increasing purity reduces recovery. The system must vent more nitrogen to maintain higher oxygen concentration. Increasing cycle time may increase purity but reduce total output. Short cycles increase output but may reduce purity stability.
Higher selectivity zeolite improves both purity and recovery but increases capital cost. Designers balance required oxygen concentration, energy cost per Nm³, capital investment, and application requirements.
Pressure and Cycle Time as Supporting Design Parameters
Operating pressure affects adsorption strength. Higher adsorption pressure increases nitrogen capture but also increases compressor energy consumption. Desorption pressure affects regeneration efficiency. Lower desorption pressure improves regeneration but increases complexity.
Cycle time defines how long adsorption and regeneration phases last. Short cycle times require fast adsorption kinetics. Slow kinetics reduce bed utilization. Improper cycle timing causes oxygen purity fluctuation, nitrogen slip, and reduced adsorbent utilization. Stable cycle design improves consistency and extends adsorbent life.
Compressed Air Requirements for PSA Oxygen Plants
PSA oxygen plants require clean and dry compressed air. Oil-free compressed air prevents zeolite contamination. Oil coats adsorbent surfaces and reduces nitrogen adsorption efficiency. Low dew point prevents moisture blockage. Moisture degrades zeolite performance and shortens service life. Poor air quality reduces oxygen purity stability, adsorbent lifespan, and recovery efficiency. Air pre-treatment is therefore a critical supporting system.
Sizing Considerations for PSA Oxygen Plants
Plant sizing depends on required oxygen flow rate, target oxygen purity, operating pressure, recovery expectations, and future expansion needs. Oversizing increases capital cost. Undersizing increases compressor load and reduces recovery. Engineers must consider peak demand, continuous demand, and redundancy requirements. Oxygen plant sizing calculation should include air consumption estimation, compressor capacity, buffer storage sizing, and safety margin.
Common Design Mistakes in PSA Oxygen Systems
Practical design errors include ignoring recovery rate during specification, selecting low-grade zeolite, using inadequate air pre-treatment, improper pressure balancing between beds, and absence of a real-time oxygen analyzer. Each mistake leads to purity instability and higher operating cost.
PSA Oxygen vs Cryogenic Oxygen Systems
PSA oxygen plants provide 90 to 93 percent purity at small to mid-scale capacity with lower capital investment and simpler operation. Cryogenic systems provide higher purity and large-scale production but require high capital cost and complex operation. PSA systems suit decentralized and medium-capacity applications.
Frequently Asked Questions
1. What is the typical purity of a PSA oxygen plant?
Most PSA oxygen plants deliver oxygen purity between 90 and 93 percent. This range suits industrial combustion, wastewater treatment, and medical oxygen concentrator systems.
2. What is oxygen recovery rate in PSA systems?
Oxygen recovery rate represents the percentage of oxygen from compressed air that becomes product gas. Higher recovery reduces compressed air consumption and improves energy efficiency.
3. Which adsorbent is used in oxygen PSA plants?
PSA oxygen plants use zeolite molecular sieve. Zeolite selectively adsorbs nitrogen while allowing oxygen to pass as product gas.
4. How does purity affect recovery rate?
Higher purity requires venting more nitrogen. Venting reduces recovery rate. Designers must balance purity requirement with energy cost and air consumption.
5. Can PSA oxygen reach 99 percent purity?
PSA oxygen systems typically operate below 95 percent purity. Systems requiring 99 percent or higher purity usually use cryogenic air separation.
6. How long does zeolite last in an oxygen plant?
Zeolite typically lasts 5 to 10 years depending on air quality, pressure stability, and maintenance practices.
Conclusion
PSA oxygen plant performance depends on engineering optimization. Oxygen purity, recovery rate, and adsorbent selection interact continuously. Designers must balance these parameters with operating pressure, cycle time, and air quality. Correct specification ensures stable oxygen concentration, predictable energy cost, and long adsorbent life. System performance depends on design discipline, not post-installation correction.
