On-site oxygen generation has replaced liquid oxygen supply in many industrial facilities. Plants now produce oxygen directly from air using adsorption-based systems. Two major technologies dominate this field: Pressure Swing Adsorption and Vacuum Pressure Swing Adsorption.
Both systems separate oxygen from nitrogen using selective nitrogen adsorption over zeolite. However, their design philosophy, operating pressure, energy model, and scale suitability differ significantly. Correct selection depends on required oxygen flow rate, target purity level, recovery expectations, and lifecycle operating cost. The decision is an engineering optimization problem, not a brand preference.

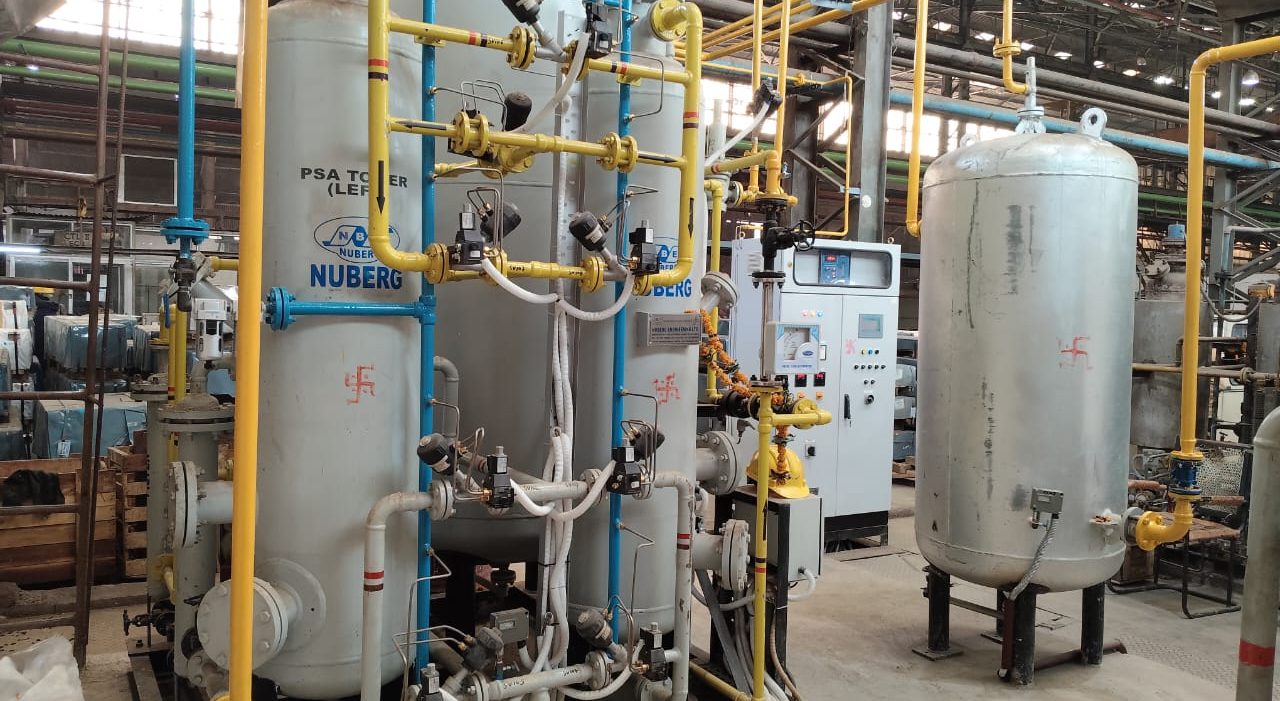

Working Principle of PSA Oxygen Plants
A PSA oxygen plant uses Pressure Swing Adsorption to separate gases from compressed air. Ambient air contains approximately 78 percent nitrogen and 21 percent oxygen. An air compressor raises air pressure and the system removes moisture and oil through filtration and drying.
Compressed air then enters an adsorption column filled with zeolite. Zeolite selectively adsorbs nitrogen molecules. Oxygen remains in the gas phase and exits as product gas. The system then reduces pressure in the adsorption column to near atmospheric level, nitrogen desorbs from the zeolite and vents out, and the column prepares for the next cycle. Typical PSA oxygen plants produce 90 to 93 percent oxygen purity at small to mid-scale capacities.
Working Principle of VPSA Oxygen Plants
A VPSA oxygen plant uses Vacuum Pressure Swing Adsorption. The separation principle remains selective nitrogen adsorption using zeolite, but the operating pressure model changes significantly.
Low-Pressure Feed Air
VPSA systems use air blowers instead of high-pressure compressors. The blower delivers air slightly above atmospheric pressure into large adsorption columns where zeolite adsorbs nitrogen and oxygen exits as product gas.
Vacuum Regeneration
A vacuum pump reduces column pressure below atmospheric level. Sub-atmospheric pressure improves nitrogen desorption efficiency. Vacuum enhances regeneration quality and improved regeneration increases adsorbent utilization. VPSA typically achieves higher recovery rate than PSA, lower specific power consumption at large scale, and improved efficiency in continuous operations.
Core Design Differences Between PSA and VPSA
Feed Air Pressure
PSA uses compressed air at higher pressure. Compressors consume significant electrical energy. VPSA uses low-pressure air blowers, reducing compression energy requirement.
Regeneration Method
PSA reduces pressure to atmospheric level for regeneration. VPSA uses vacuum pumps to create sub-atmospheric pressure, improving nitrogen desorption.
Equipment Configuration
PSA systems require an air compressor and compact adsorption columns. VPSA systems require an air blower, vacuum pump, and larger adsorption vessels, making the mechanical layout more extensive.
Oxygen Purity Comparison
Both PSA and VPSA oxygen plants typically produce oxygen within the 90 to 93 percent range. Higher purity requires cryogenic air separation. Purity stability depends on zeolite quality, cycle timing, pressure control, and oxygen purity analyzer monitoring. Purity does not define the main difference between PSA and VPSA. Scale and energy efficiency define the primary distinction.
Recovery Rate and Energy Consumption
Recovery rate defines the percentage of oxygen in feed air that becomes product gas. Higher recovery reduces air requirement per unit oxygen output. VPSA systems typically achieve higher recovery than PSA systems. Vacuum regeneration improves nitrogen desorption and increases effective bed utilization. Higher recovery reduces blower load relative to output, reducing specific power consumption measured in kWh per Nm³ oxygen.
At larger capacities, VPSA achieves lower kWh per Nm³ while PSA shows higher energy intensity. At smaller capacities, PSA remains economically practical and VPSA capital cost may not justify energy savings. Energy performance depends on scale.
Capacity Range and Scale Suitability
PSA Oxygen Plants
PSA suits hospitals, small manufacturing units, and decentralized oxygen supply. PSA systems typically operate efficiently at small to medium capacities.
VPSA Oxygen Plants
VPSA suits steel plants, glass manufacturing, mining operations, and large wastewater treatment facilities. These industries require large scale oxygen production and continuous high flow. VPSA becomes cost-effective above certain flow thresholds because higher recovery offsets higher capital cost.
Capital Investment Comparison
PSA oxygen plants require lower initial capital investment. PSA equipment includes an air compressor, adsorption columns, and control valves. VPSA oxygen plants require larger adsorption columns, an air blower, a vacuum pump, and an expanded piping network, resulting in higher initial investment.
However, VPSA reduces long-term operating cost in large-scale systems due to lower specific energy consumption. Procurement teams must compare CAPEX, OPEX, and expected operating hours. Lifecycle analysis provides accurate comparison.
Footprint and Infrastructure Requirements
PSA systems occupy a smaller footprint. Compact adsorption columns reduce space requirement. VPSA systems require larger adsorption beds, increasing structural load and foundation requirements. PSA requires high-pressure compressor power while VPSA requires blower and vacuum pump power. Plant layout constraints influence technology selection.
Maintenance and Operational Complexity
PSA maintenance focuses on compressor servicing, valve cycling wear, and zeolite replacement. VPSA maintenance includes vacuum pump maintenance, blower servicing, and larger valve assemblies. VPSA systems contain more rotating equipment, increasing maintenance planning complexity. However, energy savings at large scale may justify added maintenance. Operational stability depends on proper preventive maintenance.
Industrial Applications of PSA and VPSA Oxygen Plants
Medical and Healthcare
Hospitals require moderate oxygen flow and compact installation. PSA oxygen plants suit medical infrastructure due to smaller size and lower capital cost.
Steel and Metal Processing
Steel plants require large oxygen volumes for combustion and refining. VPSA oxygen plants provide efficient large scale oxygen production.
Glass Manufacturing
Glass furnaces consume significant oxygen continuously. VPSA systems support high-flow demand efficiently.
Wastewater Treatment
Municipal and industrial wastewater plants use oxygen for biological treatment. Medium to large facilities benefit from VPSA systems. Technology choice depends on oxygen demand profile.
PSA vs VPSA vs Cryogenic Oxygen Systems
Cryogenic air separation liquefies air and separates components through distillation. Cryogenic systems provide very high purity, very large scale production, high capital cost, and complex operation. PSA and VPSA provide moderate purity, modular deployment, and lower capital investment. Cryogenic suits very large-scale and high-purity operations. VPSA suits large mid-scale operations. PSA suits small to medium applications.
How to Select Between PSA and VPSA Oxygen Plants
Selection requires structured evaluation. Low flow favors PSA while high flow favors VPSA. Both systems provide 90 to 93 percent purity; higher purity requires cryogenic technology. High electricity cost favors higher recovery systems such as VPSA at large scale. Limited space or capital budget favors PSA. Engineers must perform technical and economic analysis before selection.
Frequently Asked Questions
What is the difference between PSA and VPSA oxygen plants?
PSA uses compressed air and atmospheric regeneration. VPSA uses low-pressure air blowers and vacuum regeneration. VPSA achieves higher recovery and lower energy consumption at larger scale.
Which is more energy efficient, PSA or VPSA?
VPSA is more energy efficient at large capacities because vacuum regeneration improves recovery rate. PSA remains efficient at small scale.
Is VPSA suitable for hospitals?
VPSA systems are generally oversized for hospital oxygen demand. PSA systems provide better economic fit for healthcare infrastructure.
What purity can VPSA oxygen plants achieve?
VPSA plants typically produce oxygen in the 90 to 93 percent range. Higher purity requires cryogenic separation.
When should a plant choose VPSA over PSA?
Plants should choose VPSA when oxygen demand is large, continuous, and energy cost reduction justifies higher capital investment.
Is VPSA more expensive than PSA?
VPSA has higher initial capital cost due to larger vessels and vacuum equipment. However, VPSA may reduce long-term operating cost at high capacities.
Conclusion
PSA and VPSA oxygen plants use the same separation principle but differ in pressure model, regeneration method, energy efficiency, and scale suitability. PSA suits compact and moderate demand installations. VPSA suits large-scale oxygen production where recovery rate and specific power consumption determine lifecycle cost. Selection must follow engineering evaluation based on flow requirement, purity, energy cost, and long-term operational goals.
